CAGED is a map of chord forms

Today’s one thing

Separate the shape name from the sounding chord name.

CAGED uses the familiar C, A, G, E and D open-chord form families as landmarks across the fretboard. When moved, a form can sound a different chord from the letter naming its original shape.

An E-shaped grip at fret 8 can sound C major. The E describes the form; C describes the actual root and chord. Mixing those names makes the system more confusing than it needs to be.

We will map only C major initially. Locate its roots and other chord tones before adding surrounding scale notes. This keeps the map attached to the harmony you already understand.

You do not need to hold every full six-string form. Some are awkward. Smaller verified fragments and arpeggios can reveal the same relationships. CAGED should help you find music, not become a physical obstacle course.

Hear it

C Voicings

Audio file

Four-beat count-in · 60 BPM · Warm sampled electric guitar. Listen once before playing along.

A concrete example

Open C x32010 and the A-shaped C x35553 both sound C major. Their form names differ; their chord identity does not.

C form chordC formEADGBe×A form chordA formEADGBe×
All diagrams sound C major. Form names describe the movable pattern, not a new chord. These are landmarks, not a requirement to hold every complete grip.

Fretboard view

High E (string 1) is the top line, matching guitar tablature. Select a note to hear it.

Root / tonicChord toneTargetChanged / colour noteOther note

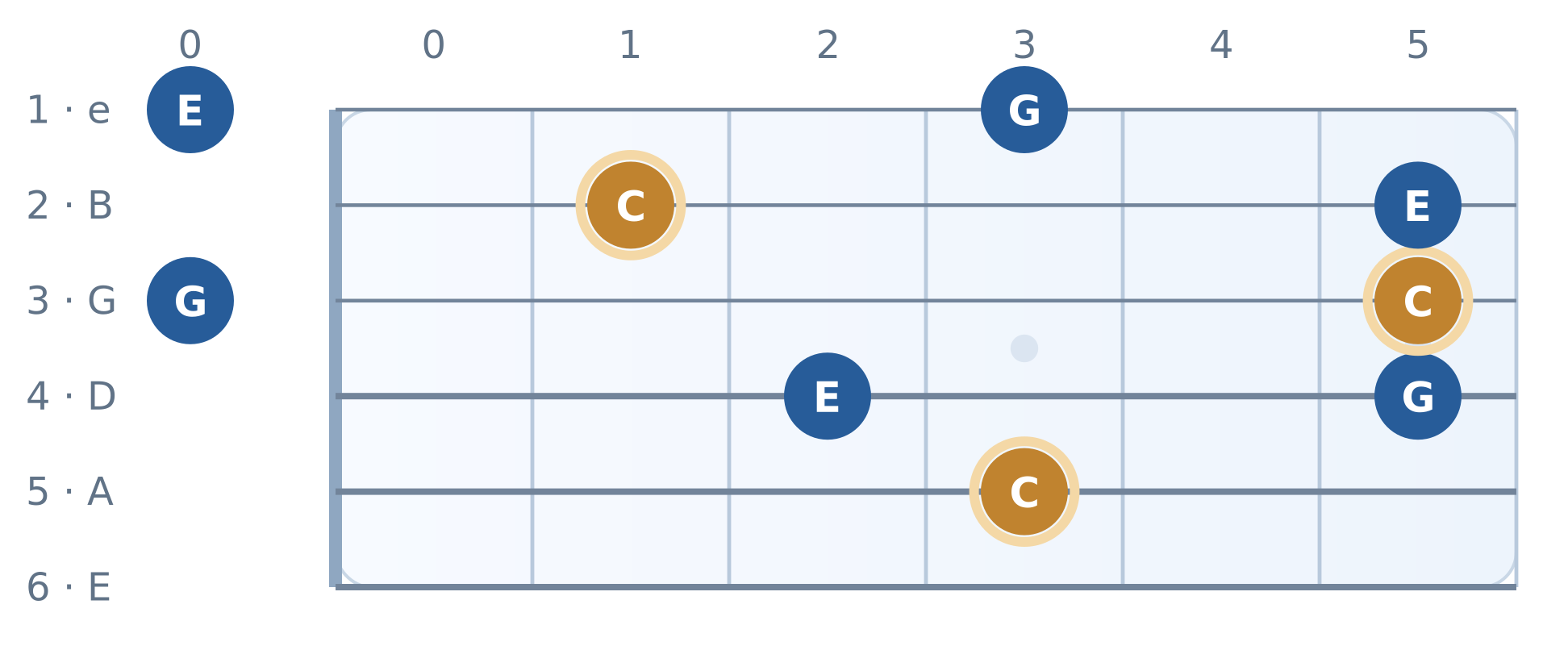

Two adjacent C-major chord forms
Open C and the neighbouring A-shaped C share the same chord notes.
Guitar fretboard diagram: Two adjacent C-major chord forms. High E string on top, frets 0 to 5. Notes C, E, G, C, E, G, C, E, G.
Identify the C roots first, then E and G. The forms are practical landmarks, not new chords.
Play notes from a larger button list

One small map at a time. Hear the notes, then play the example without looking.

Try it, slowly

  1. Name the notes of open C.
  2. Look at the second grip and locate its C root on A-string fret 3.
  3. Say “A-shaped C major” to keep the two naming jobs distinct.

Check one idea

Does an A-shaped chord always sound A major?

Show the explanation

No. Moving the form transposes its pitches. The actual root determines its sounding chord name.

A good place to stop

You can explain form name versus chord name before collecting patterns.

Return to the example after a short break. A clear explanation matters more than speed.
